EXTENSION JACKS AND LITTEL PLUGS
PATCH CORDS & MOLDED CABLE ASSEMBLIES
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

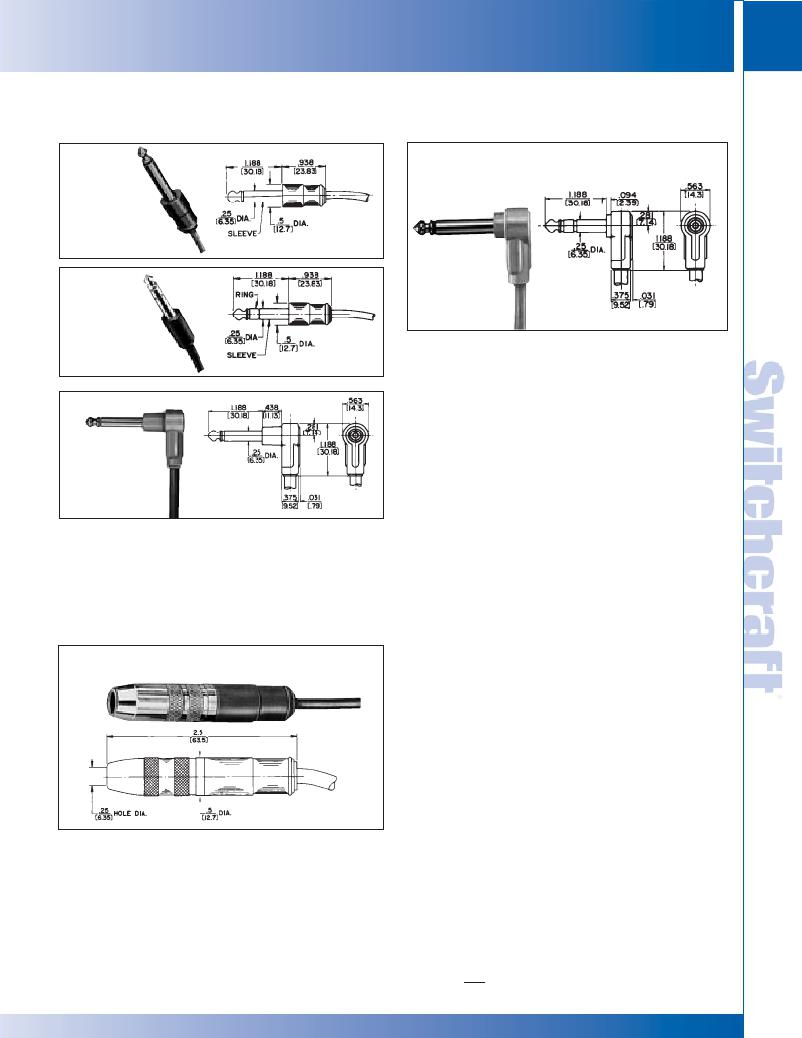

MOLDED CABLE ASSEMBLIES
WITH LITTEL PLUG ? PHONE PLUGS (continued)
? RA207
Termination Code: 06
RA208
Termination Code: 07
ST200
Termination Code: 05
ST230
257
Termination Code: 10
RA202
Termination Code: 14
RA202: Right-angle phone plug with plastic handle. Body
extension suitable where jack is recessed. RA203 is similar to
RA202, except 3-conductor plug.
? RA207, RA208: Right-angle phone plug, similar to RA202,
except short body extension. Recommended use with
panel mounted jacks. RA208 is similar to RA207, except
3-conductor plug.
? RA217: Special right-angle phone plug, identical to RA200
(previous page); also featuring a unique hook for hanging
various types of equipment (such as pillow speakers).
Completely shielded. Available on special order only.
ST200: Straight phone plug with “finger grip” handle, but
short enough to fit in all equipment.
ST230: Straight 3-conductor phone plug; same features as
ST200. Completely shielded.
MOLDED CABLE ASSEMBLIES
WITH EXTENSION JAX ? PHONE JACKS
ST121, ST131
Termination Code: 80, 81
ST121: Straight Extension Jax ? jack is a shielded 2-conductor
jack with .50" (12.7 mm) outside diameter. Cable clamp
connects shield or second conductor to cable. Mates with
.25" (6.35 mm) diameter Switchcraft 2-conductor plugs.
ST131: Straight Extension Jax jack, same as ST121, except
3-conductor. Mates with .25" (6.35 mm) diameter Switchcraft
3-conductor plugs.
SPECIFICATIONS
Housing (or Sleeve): Nickel-plated, copper alloy.
Handle: Molded plastic.
Sleeve Terminal: Plated steel.
Tip and Ring Springs: Copper alloy.
Insulation: Rigid plastic. Larger design also has a molded
thermoplastic insert.
Standard Colors: Gray, white, black, brown.
Other colors available on special order.
CABLE
Standard Shielded–Type W-1000-1 (for ST121).
Type W-1021-1 (for ST131).
Standard Unshielded–Type W-1033-1 (for ST121).
NOTE: See Standard Cable Chart on page 260 for details.
Order by part number from guide on page 259.
Special Cables: We will build assemblies on cable furnished
by you, up to .260" (6.6 mm) outside diameter, or on cables we
purchase to your specifications. Jacket must have temperature
rating of 60° C minimum.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
